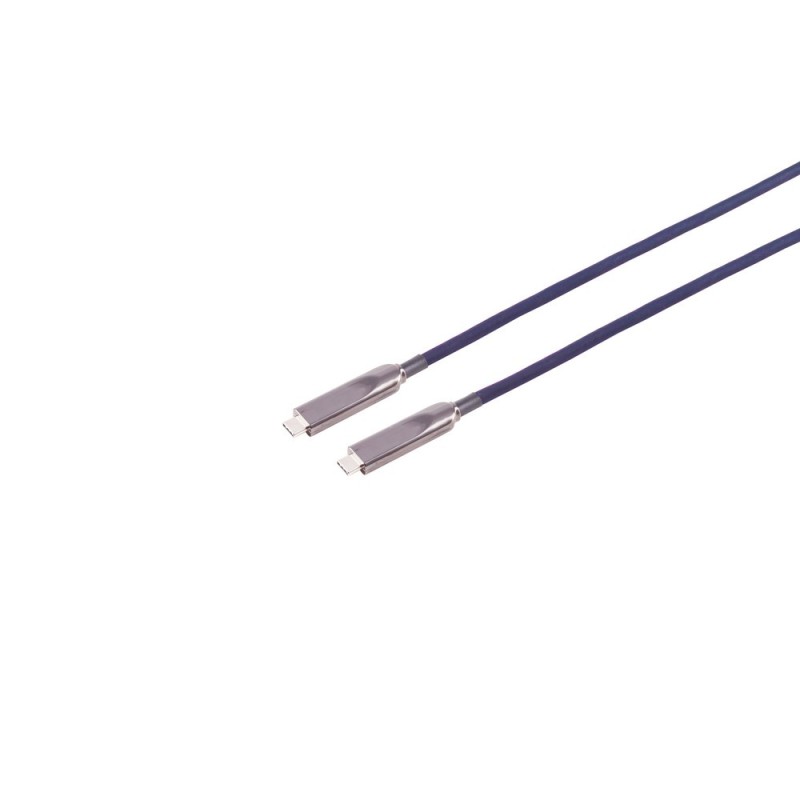

USB-C hybrid cable, 3.2, 8K, 10G, 60W, TPU
search
  • USB-C hybrid cable, 3.2, 8K, 10G, 60W, TPU

USB-C hybrid cable, 3.2, 8K, 10G, 60W, TPU

Delivery time 3-4 weeks
Cable length

In the case of a hybrid cable, some of the data is transmitted via optical fibers (light signals) and the other part via copper wires.

The advantage of such an active optical cable is that it can achieve much longer transmission distances, because light signals are much less sensitive compared to electrical signals. In addition, hybrid cables are lighter and have a smaller diameter than pure copper cables. (for comparable lengths).

USB-C is becoming increasingly popular. In addition to tablets and smartphones, this standard is also used in workstations as a video and power cable.

USB 3.2 is limited to short distances, whereas hybrid cables can now also achieve longer distances.

With this cable, you can, for example, connect your laptop to a USB-C monitor and charge your device at the same time with up to 60 W of power, if the monitor supports this feature. Or connect your workstation to a USB 3.2 docking station and use features like an SDXC card reader, USB hub, HDMI output, RJ-45 LAN adapter, and more.

Note: Not all devices with a USB-C connector support fast charging (PowerDelivery), video signal transmission (DP-Alternate Mode), or data transfer at 5/10/20 Gbps (SuperSpeed ​​USB). For more information, contact your device manufacturer.

Does not support Thunderbolt 3/4/5 or USB4 docking stations.

  • Connections: USB-C connector to USB-C connector
  • Supports: DP-Alternate Mode (up to 8K/60Hz, 4K/120Hz, 4K/60Hz), PD (up to 60W)
  • Bandwidth up to: 10 Gbps
  • USB version: USB 3.2 Gen 2 (SuperSpeed ​​USB 10 Gbps)
  • DisplayPort Alternate Mode:
    • DP 1.4, DP 2-lane mode, up to 3840 x 2160 / 60 Hz
    • DP 2.1, DP 4-lane mode, up to 7680 x 4320 / 60 Hz, 3840 x 2160 / 120 Hz.
  • USB Power Delivery: USB PD Revision 3.0, 60 Watt (20 Volts / 3 Amps)
  • Compatible with all USB-C interfaces (including): Hi-Speed ​​USB, SuperSpeed ​​USB, Thunderbolt, USB4
  • Feature:
    • In DP 2-lane mode, either USB 2.0 (480Mbps), USB 3.2 Gen 1 (5Gbps) or USB 3.2 Gen 2 (10Gbps) is supported
    • In DP 4-lane mode, USB 2.0 (480Mbps) is supported

The cable can only be used for unidirectional video transmission,
Source must be connected to the source device (laptop, computer)
The display must be connected to a monitor, TV, interactive display, digital whiteboard, etc.)

  • Shielding: ALU foil laminates PIMF
  • Wire material: copper / POF
  • Connector: molded
  • Socket: zinc die-cast
  • Cable type: round cable
  • Reinforcement: aramid fiber (Kevlar®)
  • Cable sheath: TPU (halogen-free)
  • Cable diameter (approx.): 5.2 mm
  • Cable sheath color: blue (RAL 5013, cobalt blue)
  • Colour USB-C connector housing: anthracite

General Information

Reference
30-44061

Data sheet

Cables
USB-C
